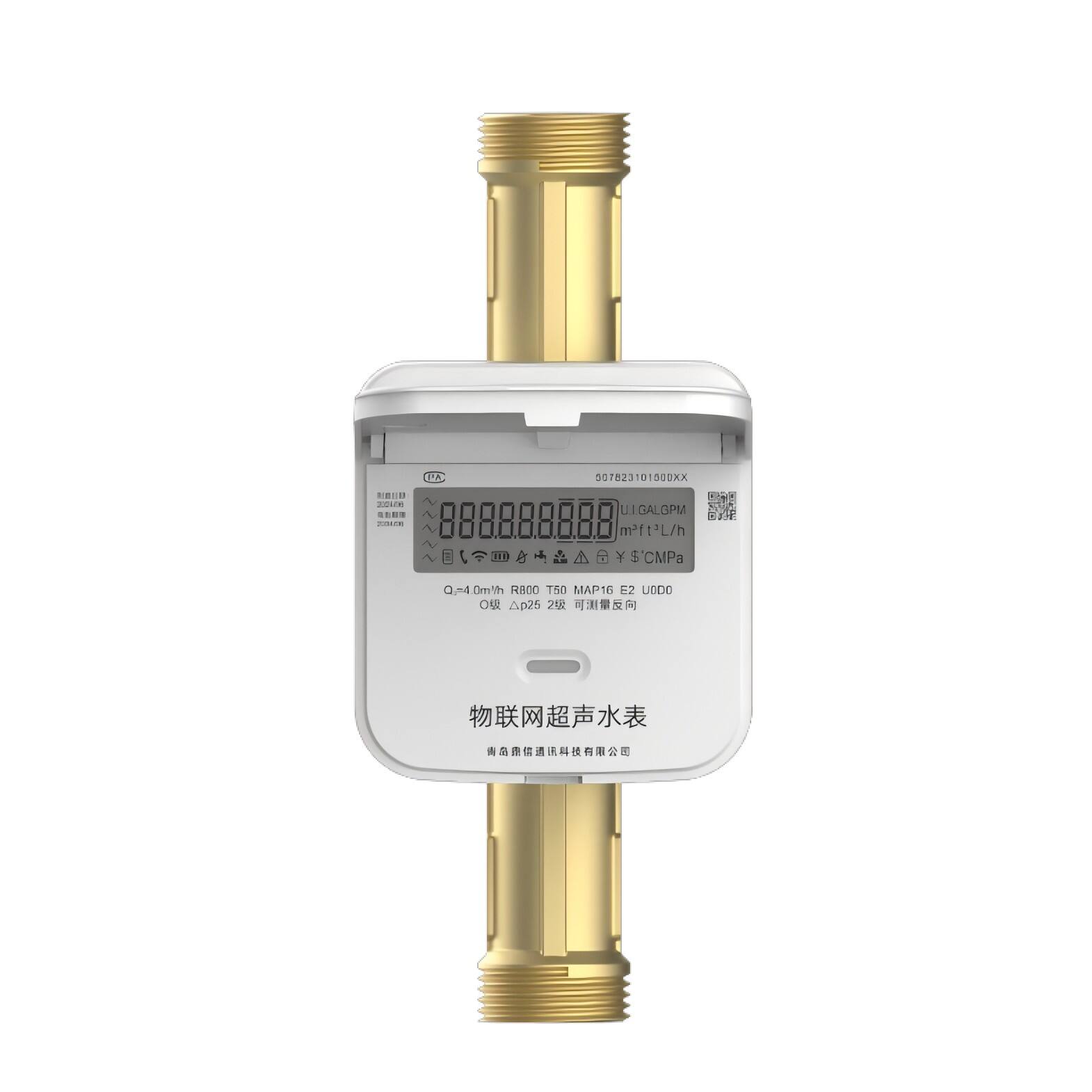

Plastic Pipe Section, Metal Pipe Section Ultrasonic Water Meter (No Valve)

Product Application scenarios：

One household, one meter renovation

Pipeline network leakage treatment

Rural water supply renovation

Commercial water management

Product Specifications and Parameters：

Performance parameter	DN15	DN20	DN25
Range ratio (Q3 / Q1)	≥250
Common flow rate Q3 (L/h)	2500	4000	6300
Measurement accuracy level	2
Pressure loss grade	Δp63
Electromagnetic compatibility	E2
Flow-field sensitivity	U0/D0
Working pressure	≤1.6Mpa
Environmental level	-25℃~55℃, ≤100%RH
Installation direction	H, V
Temperature grade	T30/T50
Levels of protection	IP68
Display content	integrated flux (m3), instantaneous delivery (m3/h), water temperature (℃), performance period(h), date , software release
Datacom	NB-IoT, infrared
Working life	≥10year
Type of alarm	Battery under pressure, blank pipe, leak through, countercurrent, freeze, high temperature;
Length(mm)	165	195	225
Width(mm)	85	85	85
Height(mm)	79	87	95
Cover Height(mm)	70.5	70.5	70.5
