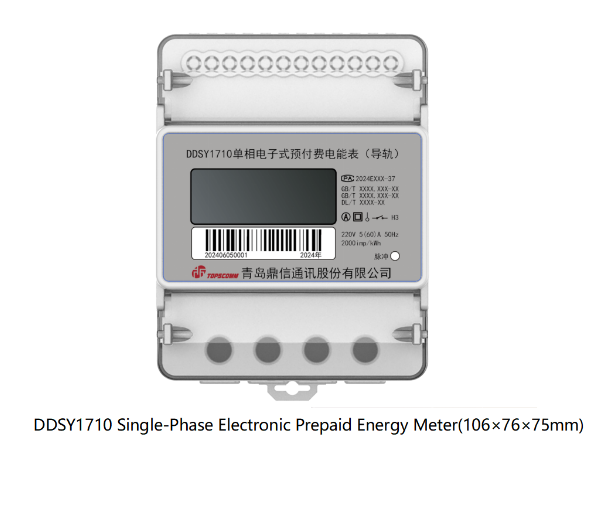

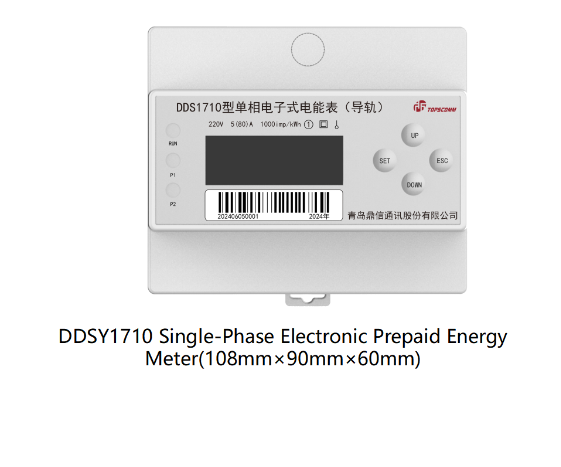

Single-Phase Electronic Prepaid Energy Meter
The DDSY1710 single-phase electronic prepaid energy meteris a new generation intelligent high-tech electric energy metering product developedand produced by Qingdao Topscomm Communication Co., Ltd.
- Overview
- Recommended Products
1、Self-developed Chips
The main chips such as the MUC chip, 485 chip, metering chip, and magnetic isolation chip are "tailor-made for the energy meter. They are combined with mature and stableindependent metering algorithms and a modular software and hardware development platform to meet preccise metering and customized functionality requirements.
2、Intelligent Manufacturing
The processes of PCBA, assembly, calibration, and packaging are allautomated, ensuring the product has high consistency and reliability.
| Technical Details | Parameter Value |
| Rated voltage | 220V |
| Voltage range | 0.9Unom~1.1 Unom |
| Installation Method | 35 mm standard DIN rail mounting |
|
Minimum-rated (maximum)current |
0.25-0.5(60)A |
| Switch Type | Built-in Fee Control Switch |
| Accuracy class | Active:1.0 |
| function |
The product integrates metering,collection,display,and RS485 communication,realizing the functions of electricity measurement and power collection for users. |
