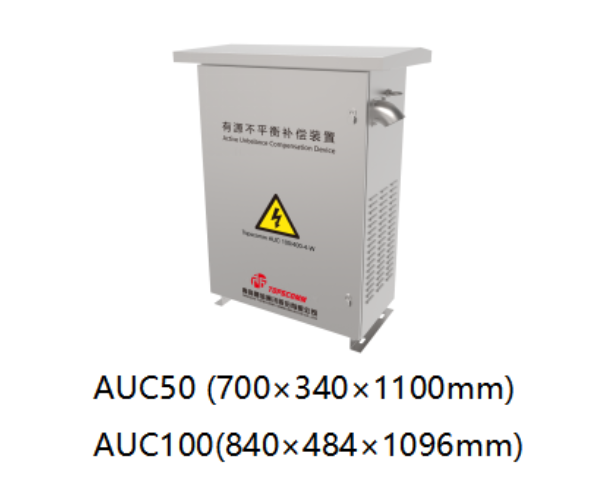

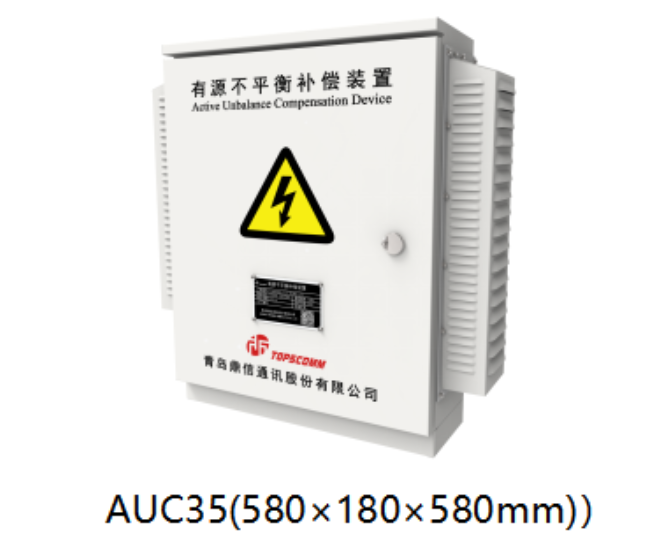

Active Unbalance Compensation device
It sends control signals to the internal IGBT and drives it to act, compensating for the unbalanced current required by the load and achieving the purpose of compensation.
- Overview
- Recommended Products
1、Highprotectionlevel
The interior of the device is not affected by moisture, dust, heat, rain, ow, wind and sand;
2. Convenient installation and debugging
The equipment is connected in parallel to the power grid, so it can be installed without
power interruption. The equipment is equipped with Bluetooth for noncontact control.
3. Design of high zero-line current compensation capability
In view of the problem of large zero-line current in three-pphase unbalanced transformer areas, the zero-line current compensation capability is designed to be twice that of the phase line.
4、High-frequency EMC design
Eliminate high-frequency current, achieve zero interference iin the power grid, and have no impact on carrier waves.
