HDC Dual-Mode Communication Chip

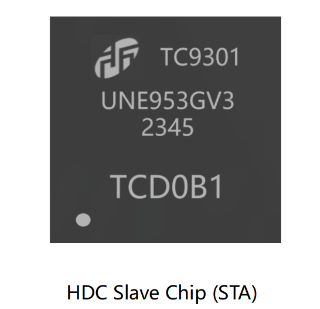

The TCRSOB1/TCDOB1 Chip is a high-performance, highly integrated dual-mode communication Chip based on OFDM modulation, independently developed by our company.
- Overview
- Recommended Products
1. The Chip is independently designed and developed, with good system compatibility.
2. High-Performance Digital Signal Processing Technology.
3. OFDM modulation (Subcarriers can support BPSK,QPSK, 16QAIM).
4. Continuing to use High-speed Power Line Carrier technology, the communication capability is stronger under Multi-harmopnic interference scenarios.
5. Dual transmit and dual receive, with a mention of dataa throughput.
6. Dual-mode single network, automatically selects the besst path between HPLC/HRF, enhancing network stability and reliability.
| Technical Specifications | Parameter Value |
| Communication Frequency Band | HPLC:0.7～12MHz、HRF:470～510MHz |
| Communication Rate | HPLC:<2Mbps、HRF:<1Mbps |
| Modulation Scheme | HPLC&HRF:OFDM |
| PLC Attenuation Resistance | 106dB |
| RF Receive Sensitivity | -115dBm |
| Communication Distance | Point-to-Point 300-500m |
| Communication Latency | ≤20ms |
| Service Life | ≥15 Years |
| Operating Voltage | AC220V、DC750 |
| Environmental Temperature | -45℃~+85℃ |
